Physics (Class 12) Term 2 Question Paper 2024
SECTION – A
-

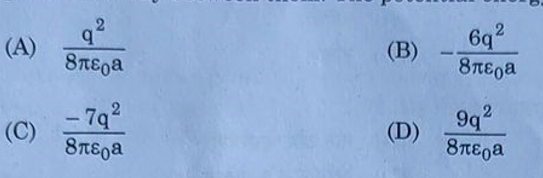

Two charges + q each are kept ‘2a’ distance apart. A third charge – 2q is placed midway between them. The potential energy of the system is –
2. Two identical small conducting balls B, and B, are given -7 pC and + 4 pC charges respectively. They are brought in contact with a third identical ball B3 and then separated. If the final charge on each ball is -2 pC, the initial charge on B was
(A) -2 pC
(С) -5 рС
(B) -3 рС
(D) -15 pC
3. The quantum nature of light explains the observations on the photoelectric effect as –
(A) there is a minimum frequency of incident radiation below which no electrons are emitted.
(B) the maximum kinetic energy of photoelectrons depends only on the frequency of incident radiation.
(C) when the metal surface is illuminated, electrons are ejected from the surface after some time.
(D) the photoelectric current is independent of the intensity of incident radiation.

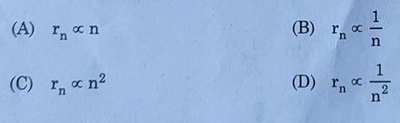

4. The radius (rn) of nth orbit in Bohr model of hydrogen atom varies with n as
5. A straight wire is kept horizontally along east west direction. If a steady current flows in wire from east to west, the magnetic field at a point above the wire will point towards
(A) East
(B) West
(C) North
(D) South
6. The magnetic susceptibility for a diamagnetic material is
(A) small and negative
(B) small and positive
(C) large and negative
(D) large and positive
7. A galvanometer of resistance 100 is converted into an ammeter of range (0 – 1 A) using a resistance of 0.1 2. The ammeter will show full scale deflection for a current of about
(A) 0.1 mA
(C) 10 mA
(B) 1 mA
(D) 0.1 A
8. A circular loop A of radius R carries a current I. Another circular loop B of radius r[=R/20] is placed concentrically in the plane of A. The magnetic flux linked with loop B is proportional to
(A) R
(B) [R
(C) R 3/2
(D) R2

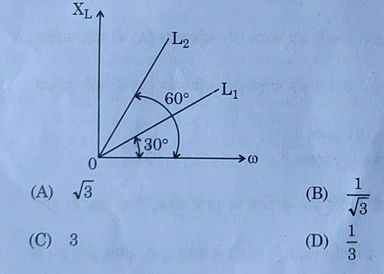

9. Figure shows the variation of inductive reactance XL of two ideal inductors of inductance L1 and L2, with angular frequency (i). The value of L1/L2 is
10. The phase difference between electric field E and magnetic field B in an electromagnetic wave propagating along z-axis is –
(A) zero
(В) п
(C) п/2
(D) п/4
11. A coil of N turns is placed in a magnetic field B such that B is perpendicular to the plane of the coil. B changes with time as B=B0 cos 2元 where T is time period. The magnitude of emf-induced in the coil will be maximum at

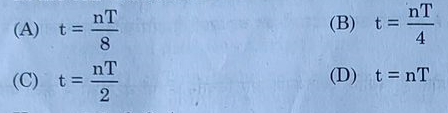

Here, n= 1, 2, 3, 4, …..
12. In Balmer series of hydrogen atom, as the wavelength of spectral lines decreases, they appear
(A) equally spaced and equally intense.
(B) further apart and stronger in intensity.
(C) closer together and stronger in intensity.
(D) closer together and weaker in intensity.
Note : For questions number 13 to 16, two statements are given – one labelled Assertion (A) and the other labelled Reason (R). Select the correct answer to these questions from the codes (A), (B), (C) and (D) as given below :
(A) If both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of Assertion (A).
(B) If both Assertion (A) and Reason (R) are true and Reason (R) is not the correct explanation of Assertion (A).
(C) If Assertion (A) is true and Reason (R) is false.
(D) If both Assertion (A) and Reason (R) are false.
13. Assertion (A) : Electrons are ejected from the surface of zinc when it is irradiated by yellow light.
Reason (R) : Energy associated with a photon of yellow light is more than the work function of zinc.
14. Assertion (A) : The temperature coefficient of resistance is positive for metals and negative for p-type semiconductors.
Reason (R) : The charge carriers in metals are negatively charged, whereas the majority charge carriers in p-type semiconductors are positively charged.
15. Assertion (A) : When electrons drift in a conductor, it does not mean that all free electrons in the conductor are moving in the same direction.
Reason (R) : The drift velocity is superposed over large random velocities
of electrons.
16. Assertion (A) : In interference and diffraction of light, light energy reduces in one region producing a dark fringe. It increases in another region and produces a bright fringe.
Reason (R) : This happens because energy is not conserved in the phenomena of interference and diffraction.
SECTION – B
17. Draw the circuit diagram of a p-n junction diode in (i) forward biasing and (ii) reverse biasing. Also draw its I-V characteristics in the two cases.
18. A proton and a-particle are accelerated through different potentials V1 and V2 respectively so that they have the same de Broglie wavelengths. Find V1/V2.
19. A ray of light is incident normally on one face of an equilateral glass prism of refractive index . When the prism is completely immersed in a transparent medium, it is observed that the emergent ray just grazes the adjacent face. Find the refractive index of the medium.
20. Two electric heaters have power ratings P, and P?, at voltage V. They are connected in series to a de source of voltage V. Find the power consumed by the combination. Will they consume the same power if connected in parallel across the same source?

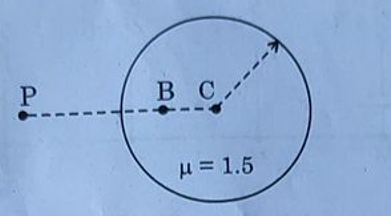

21. (a) An air bubble is trapped at point B (CB = 20 cm) in a glass sphere of radius 40 cm and refractive index 1.5 as shown in figure. Find the nature and position of the image of the bubble as seen by an observer at point P.
or
(b) In normal adjustment, for a refracting telescope, the distance between objective and eye piece lens is 1.00 m. If the magnifying power of the telescope is 19, find the focal length of the objective and the eyepiece lens.
SECTION – C
22. (a) Differentiate between nuclear fission and fusion.
(b) The fission properties of Pu239 are very similar to those of 92U235. How much energy (in MeV), is released if all the atoms in 1 g of pure 94Pu239 undergo fission? The average energy released per fission is 180 MeV.
23. The electric field in a region is given by
É = (10x + 4)ĩ
where x is in m and E is in N/C. Calculate the amount of work done in taking a unit charge from
(i) (5 m, 0) to (10 m, 0)
(ii) (5 m, 0) to (5 m, 10 m)
24. Draw the graph showing variation of scattered particles detected (N) with the scattering angle (0) in Geiger-Marsden experiment. Write two conclusions that you can draw from this graph. Obtain the expression for the distance of closest approach in this experiment.

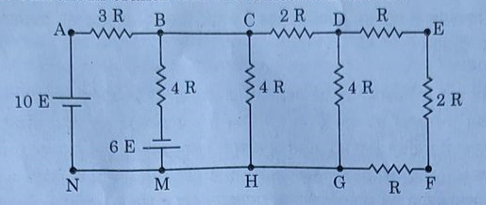

25. Find the current in branch BM in the network shown :

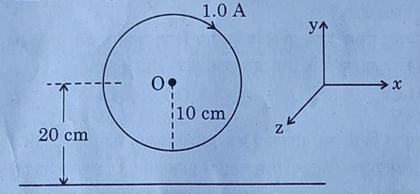

26. A circular loop of radius 10 cm carrying current of 1.0 A lies in x-y plane. A long straight wire lies in the same plane parallel to x-axis at a distance of 20 cm as shown in figure.
Find the direction and value of current that has to be maintained in the wire so that the net magnetic field at 0 is zero.
27. Name the electromagnetic waves with their wavelength range which are used for
(i) FM radio broadcast
(ii) detection of fracture in bones
(iii) treatment of muscular strain
28. (a) (i) Define mutual inductance. Write its SI unit.
(ii) Derive an expression for the mutual inductance of a system of two long coaxial solenoids of same length l, having turns N, and N, and of radi r, and re (> r,).
or
(b) What are ferromagnetic materials ? Explain ferromagnetism with the help of suitable diagrams, using the concept of magnetic domain.
SECTION – D
Note : Questions number 29 to 30 are Case Study based questions. Read the following paragraph and answer the questions that follow.
29. A pure semiconductor like Ge or Si, when doped with a small amount of suitable impurity, becomes an extrinsic semiconductor. In thermal equilibrium, the electron and hole concentration in it are related to the concentration of intrinsic charge carriers. p-type or n-type semiconductor can be converted into a p-n junction by doping it with suitable impurity. Two processes, diffusion and drift take place during formation of a p-n junction. A semiconductor diode is basically a p-n junction with metallic contacts provided at the ends for the application of an external voltage. A pen junction diode allows currents to pass only in one direction when it is forward biased. Due to this property, a diode is widely used to rectify alternating voltages, in half-wave or full wave configuration.
(i) When Ge is doped with pentavalent impurity, the energy required to free the weakly bound electron from the dopant is about
(A) 0.001 eV
(B) 0.01 eV
(C) 0.72 eV
(D) 1.1 eV
(ii) At a given temperature, the number of intrinsic charge carriers in a semiconductor is 2.0 x 1010 cm 3. It is doped with pentavalent impurity atoms. As a result, the number of holes in it becomes 8 x 103 cm 3. The number of electrons in the semiconductor is
(A) 2 × 1024 m-3
(B) 4 × 1023 m-3
(C) 1 × 1022 m-3
(D) 5 x 1022 m-3
(iii) (a) During the formation of a p-n junction –
(A) electrons diffuse from p-region into n-region and holes diffuse from n-region into p-region.
(B) both electrons and holes diffuse from n-region into p-region.
(C) electrons diffuse from n-region into p-region and holes diffuse from p-region into n-region.
(D) both electrons and holes diffuse from p-region into n-region.
or
(iii) (b) Initially during the formation of a p-n junction –
(A) diffusion current is large and drift current is small.
(B) diffusion current is small and drift current is large.
(C) both the diffusion and the drift currents are large.
(D) both the diffusion and the drift currents are small.
(iv) An ac voltage V = 0.5 sin (100 rt) volt is applied, in turn, across a half-wave rectifier and a full-wave rectifier. The frequency of the output voltage across them respectively will be
(A) 25 Hz, 50 Hz
(B) 25 Hz, 100 Hz
(C) 50 Hz, 50 Hz
(D) 50 Hz, 100 Hz
30. A lens is a transparent optical medium bounded by two surfaces; at least one of which should be spherical. Applying the formula of image formation by a single spherical surface successively at the two surfaces of a thin lens, a formula known as lens maker’s formula and hence the basic lens formula can be obtained. The focal length (or power) of a lens depends on the radii of its surfaces and the refractive index of its material with respect to the surrounding medium. The refractive index of a material depends on the wavelength of light used. Combination of lenses helps us to obtain diverging or converging lenses of desired power and magnification.

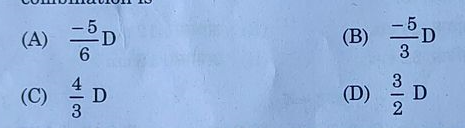

(i) A thin converging lens of focal length 20 cm and a thin diverging lens of focal length 15 cm are placed coaxially in contact. The power of the combination is

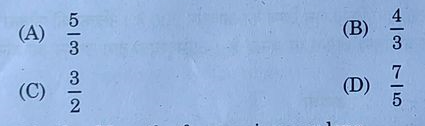

(ii) The radii of curvature of two surfaces of a convex lens are R and 2R. If the focal length of this lens is (4/3) R, the refractive index of the material of the lens is :
(iii) The focal length of an equiconvex lens
(A) increases when the lens is dipped in water.
(B) increases when the wavelength of incident light decreases.
(C) increases with decrease in radius of curvature of its surface.
(D) decreases when the lens is cut into two identical parts along its principal axis.
(iv) (a) A thin convex lens L of focal length 10 cm and a concave mirror M of focal length 15 cm are placed coaxially 40 cm apart as shown in figure. A beam of light coming parallel to the principal axis is incident on the lens. The final image will be formed at a distance of
(A) 10 cm, left of lens
(B) 10 cm, right of lens
(C) 20 cm, left of lens
(D) 20 cm, right of lens
or
(b) A beam of light coming parallel to the principal axis of a convex lens L, of focal length 16 cm is incident on it. Another convex lens L, of focal length 12 cm is placed coaxially at a distance 40 cm from L1. The nature and distance of the final image from L2 will be
(A) real, 24 cm
(B) virtual, 12 cm
(C) real, 32 cm
(D) virtual, 18 cm
SECTION – E
31. (a) (i) Draw a ray diagram for the formation of the image of an object by a convex mirror. Hence, obtain the mirror equation.
(ii) Why are multi-component lenses used for both the objective and the eyepiece in optical instruments?
(iii) The magnification of a small object produced by a compound microscope is 200. The focal length of the eyepiece is 2 cm and the final image is formed at infinity. Find the magnification produced by the objective.
OR
(i) Differentiate between a wavefront and a ray.
(ii) State Huygen’s principle and verify laws of reflection using suitable diagram.
(iii) In Young’s double slit experiment, the slits S, and S, are 3 mm apart and the screen is placed 1.0 m away from the slits. It is observed that the fourth bright fringe is at a distance of 5 mm from the second dark fringe. Find the wavelength of light used.
32. (a) (i) A dielectric slab of dielectric constant K and thickness t’ is inserted between plates of a parallel plate capacitor of plate separation d and plate area A. Obtain an expression for its capacitance.
(ii) Two capacitors of different capacitances are connected first (1) in series and then (2) in parallel across a de source of 100 V. If the total energy stored in the combination in the two cases are 40 mJ and 250 mJ respectively, the capacitance of the capacitors.
or
(b) (i) Using Gauss’s law, show that the electric field E at a point due to a uniformly charged infinite plane sheet is given by E = 280 where symbols have their usual meanings.
(ii) Electric field E in a region is given by → E = (Ex + 2) 1
where E is in N/C and x is in meters.
A cube of side 10 cm is placed in the region as shown in figure.
